What are Marine Damper Drive Plates?

Engineered for Smooth and Reliable Operation

Marine damper drive plates are ingeniously designed components that play a crucial role in ensuring the smooth and quiet operation of marine engines and transmissions. Developed by R&D Marine, these plates are engineered to address the challenges of gear noise and vibrations, delivering superior performance and reliability.

At the heart of these damper drive plates lies a unique blend of advanced materials and innovative engineering. The flexible elements are crafted from a polyester elastomer, a material renowned for its exceptional heat resistance and immunity to salt water, diesel, and lubrication oils. This robust construction ensures durability and longevity, even in the harshest marine environments.

Get in touch

Placeholder

Comprehensive Range for Various Applications

R&D Marine’s damper drive plates are available in a wide range of configurations, catering to diverse engine and gearbox combinations. Whether you’re seeking a solution for engines up to 800 HP or torque requirements ranging from 60 to 1400 lb ft, our products have you covered.

The linear stiffness elements are designed for general applications, offering up to 3 degrees of deflection. For more demanding scenarios, our high-deflection elements effectively stop gear noise and spline wear, even at slow speeds. Additionally, our hammerhead elements provide a three-stage stiffness with up to 9 degrees of deflection, making them ideal for torsionally active applications.

Why choose our Damper Drive Plates

Engine power compatibility: Up to 800 HP

Torque range: 60-1400 lb-ft

Flexible element material: Polyester elastomer

Backplate diameter: Up to 533mm (21.0″)

Fail-safe design: Maintains drive if a flexible element fails

Ready-to-install: No machining required

Reduces gear noise: quieter and more comfortable operating environment.

Heat and chemical resistance: Withstands harsh marine conditions.

Element properties: Heat-resistant, salt water and oil-resistant

Worldwide availability

Allows engine to run at lower speeds: Optimise fuel efficiency and extend engine life.

Versatile range: Suitable for every application, from general use to specialised scenarios.

Competitively priced: Cost-effective solutions without compromising quality.

No springs to rust or fret: Eliminates maintenance concerns associated with traditional designs.

A Closer Look

Dive into the intricate details of our damper drive plates with our comprehensive product guide. Explore the intricate designs, robust construction, and advanced materials that make our products stand out.

Click Here

FAQs

We understand that selecting the right damper drive plate can be a complex process, and you may have questions or concerns. Feel free to explore our comprehensive FAQ section, where we address common queries and provide insights to help you make an informed decision.

1. How do I know if my marine engine needs a damper drive plate?

If you are experiencing excessive gear noise, vibrations, or rattling in your marine engine, especially at low speeds or during gear shifts, it may indicate the need for a damper drive plate. These symptoms can be signs of torsional vibrations that the damper plate is designed to absorb, indicating a potential issue that can be addressed by installing a damper drive plate.

2. Can a marine damper drive plate improve the performance of my marine engine?

Yes, a marine damper drive plate can improve the performance of your marine engine by reducing gear noise, minimising vibrations, and enhancing the overall smoothness of operation. By absorbing and dampening torsional vibrations, the damper drive plate helps maintain the integrity of the drivetrain components, leading to improved efficiency, reduced wear and tear and enhanced overall performance of the engine and transmission system.

3. How often should marine damper drive plates be inspected or replaced?

Marine damper drive plates should be inspected regularly as part of routine maintenance checks for marine engines. It is recommended to inspect the damper drive plate during scheduled engine maintenance intervals or whenever unusual vibrations or noises are detected. Depending on usage and operating conditions, damper drive plates may need to be replaced every few years or as recommended by the manufacturer to ensure optimal performance and reliability of the marine engine.

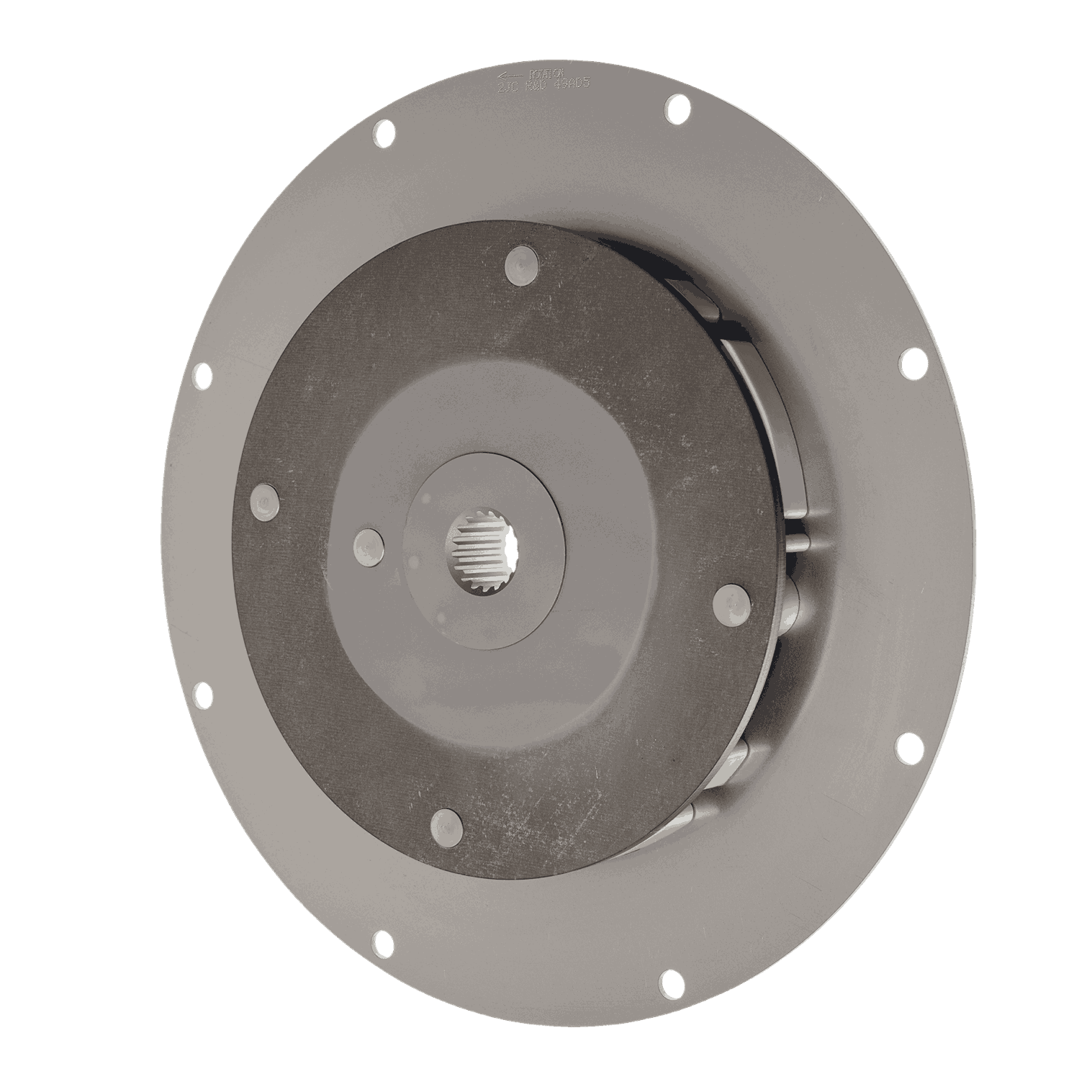

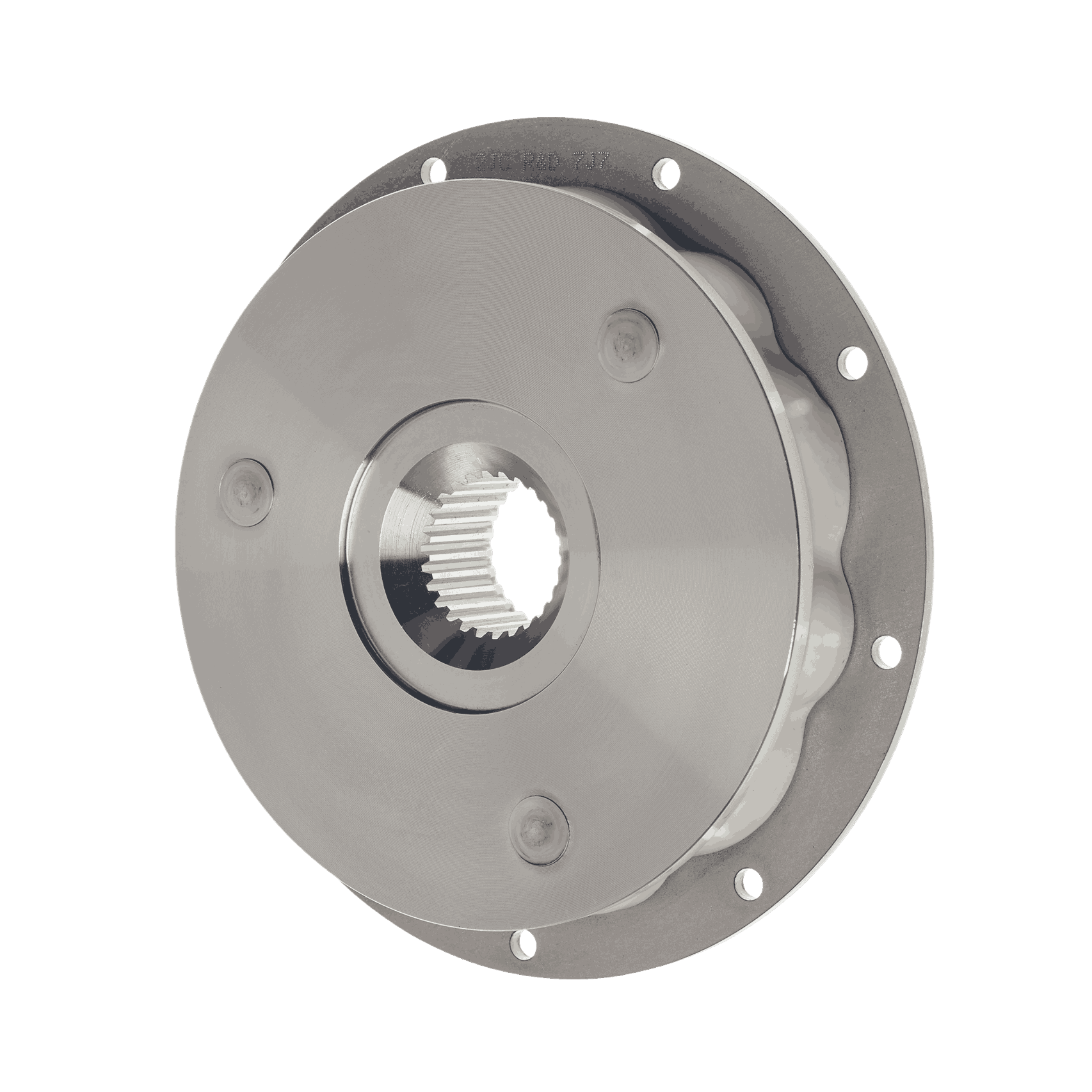

Marine Damper Drive Plates
